There is more to an electric guitar than meets the eye. Although many enthusiasts, including musicians, may not realize it, electric guitars work through a system of interconnected parts, each contributing to the final sound and the playability of the instrument. When purchasing an electric guitar, the parts are mostly the same, but the quality of the materials, woods, components, and craftsmanship vary, which also affects the price. To ensure your guitar is reliable and long-lasting, it’s important to understand what goes into its construction. In this article, we’ll explore the functions of each main section of an electric guitar and how they work together.

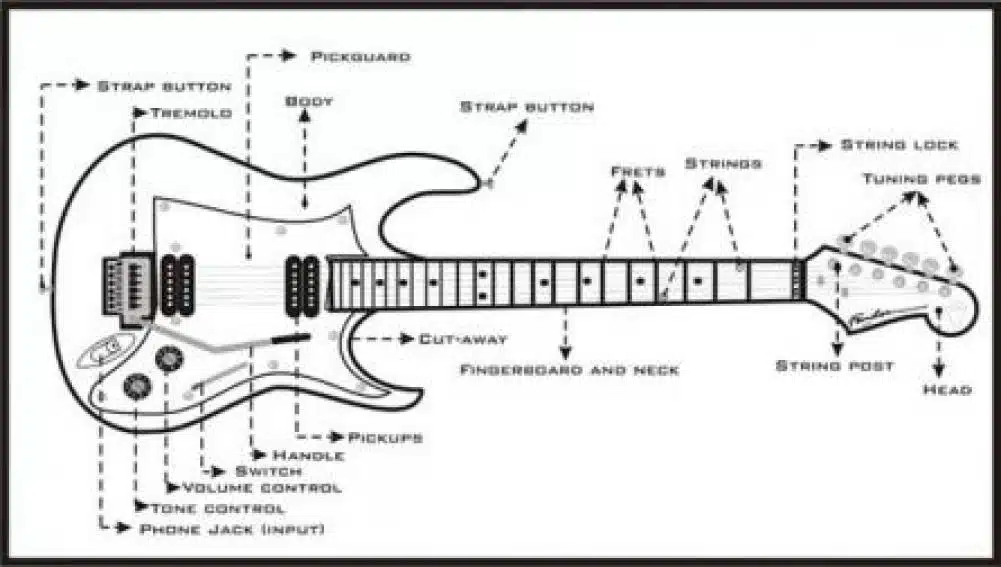

The Body

The guitar’s body is the central part of the instrument, usually made of wood. Common materials for electric guitar bodies include maple, ash, basswood, and mahogany. Guitar bodies can be solid, semi-hollow, or hollow-body. Solid-body guitars are the most common, featuring a solid form without air chambers. Semi-hollow bodies have small air chambers for a slightly softer sound, while hollow-body guitars have a completely hollow design, providing a warm, rich sound full of harmonics.

The Neck

The neck of the guitar comprises several elements that ensure its stability and shape. The top part of the neck is called the “fingerboard,” and a metal rod, the truss rod, runs through the neck for added stability and to prevent warping. The fingerboard contains frets, each representing a musical note.

Necks vary based on several factors:

• The scale length, the distance between the nut and the bridge. Common scales are Gibson’s 24.75 inches and Fender’s 25.5 inches. Longer scales increase string tension.
• Fingerboard curvature, or radius, comes in various sizes and impacts playability. The radius can range from 7.5 to 16 inches. Flatter boards are favored in genres emphasizing speed and technical play.
• The neck shape varies; common shapes include rounded, triangular, or squared profiles.
• The number of frets ranges from 21 to 27, though most electric guitars have 22 to 24 frets.
• Neck attachment methods differ: Fender-style bolt-on necks, Gibson-style set necks, or neck-through designs where the neck is part of the guitar’s body.
• The nut, located at the end of the neck, significantly affects sustain and sound. Nuts are made from plastic, bone, or metal.
• The truss rod, a metal or plastic piece, adjusts the neck’s curvature and the guitar’s action.

The Fingerboard

The fingerboard is where musicians place their fingers to play notes and chords. It contains frets, typically 22 to 24, covering about two octaves. Common woods include maple and mahogany. Notes are produced by pressing strings against the frets, and the strings are plucked with a pick or fingers.

Bridge and Tailpiece

The bridge and tailpiece are crucial components of an electric guitar. The bridge transfers string vibrations to the body, while the tailpiece holds the strings under tension, which can be adjusted for tuning using tuners located on the headstock at the opposite end.

Hardware and Electronics

The hardware and electronics of an electric guitar include several components that enable the instrument to function. Key elements include:

• Pickups, which are essentially microphones or electromagnetic devices that convert string vibrations into electrical signals sent to an amplifier.
• Controls for adjusting the volume and tone, sometimes for all pickups collectively or for individual ones.
• The pickup selector, whose function depends on the pickup configuration. Common configurations include:
  • 3 single coils (SSS), typical of Stratocasters, for a traditional bright sound.
  • 2 humbuckers (HH), typical of Gibson, offering a warmer, fuller sound, ideal for distortion-heavy genres.
  • 2 single coils, common in Telecasters.
  • Other configurations include HSS, found in Ibanez models, or Telecasters with a humbucker at the bridge and a single coil at the neck.
• Proper shielding and potentiometers are essential for optimal sound conversion and amplification.

Finishes

Finishing touches enhance the guitar’s aesthetics and functionality. These can include pickguards, which protect the guitar’s front, and knobs for volume and tone adjustments.

Conclusion

The electric guitar is a highly versatile instrument, playable in many styles, from rock to jazz to symphonic metal. Every component of an electric guitar affects the player’s experience, from functional to aesthetic aspects. It’s crucial for musicians to understand these elements to improve their guitars or choose their next one wisely.
