MIDI Switcher Pedalboard V-10 CLIPPER
Custom Worldwide Shipping.
Pricing may vary based on requested customizations, order processing, and shipping destination. Please request a quote.

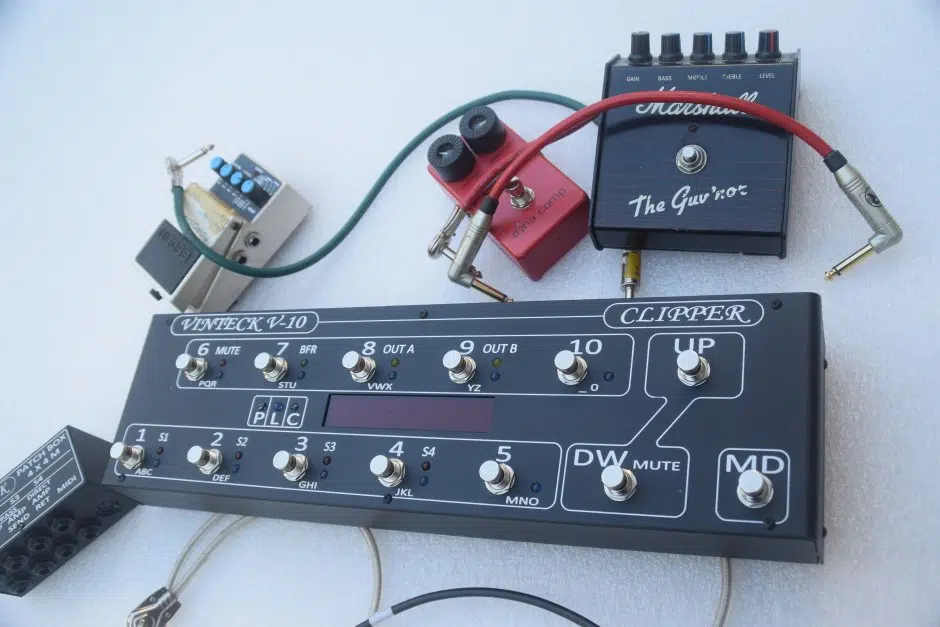

V-10 CLIPPER by Vinteck is the ultimate MIDI switching pedalboard: 10 loops (2 stereo), programmable buffer, alphanumeric display, and advanced management of any complex setup.
Fotogallery
Technical Specs
10-loop stereo MIDI switching pedalboard with alphanumeric display
Technical Features:
- 10 loops for single effects (8 mono, loops 9 and 10 stereo).
- 4 independent switches for amp channel switching (latch, single shot, dual shot).
- 2 mechanical loops for amp send/return connection (configurable 6 in front/4 in S/R or 8/2).
- Programmable IN buffer for each patch (individually or general).
- Tuner out with MUTE function, activatable on the fly or programmable.
- Out A and B usable in stereo or A/B (A+B programmable).
- Input for expression pedal (25K or 250K) and for external tap tempo.
MIDI Management:
Program change mapping. Up to 5 CCs concatenable per patch. 1 Continuous CC for expression pedal. MIDI Tap tempo always active.
Interface and Dimensions:
Alphanumeric high-brightness LED matrix display (patch name up to 8 characters). Dimensions: 43 x 12.5 cm (height 6 cm front, 7 cm back). Weight: 2.2 Kg. Power supply 12 V AC/DC 0.6 A.
